JCALLY JM98 MAX 2 Portable USB DAC Amplifier
- You must provide a complete and accurate shipping address with matching postal code; incorrect details will cause delays or returns.
- If you fail to pick up the parcel or refuse delivery, the parcel may be returned and you are responsible for any return fees, and re-shipment costs.
- Standard delivery takes 7–14 business days (varies by destination).
- Taxes & Duties:Enjoy tax-inclusive shipping.
- Please add items to the cart, and then enter your destination to get a shipping cost estimate.
- Once shipped, cancellations are not accepted.
The JM98MAX2 redefines the dongle DAC category by pairing one of the cleanest measurements in its class with genuine drive power. At its heart is the revered Cirrus Logic CS43198 – a flagship DAC that extracts every detail from your music, while the SGM8262 operational amplifier delivers a full 195mW into 32Ω, giving you the headroom to drive demanding IEMs and even many over-ear headphones with authority. The result? A jet-black background, microscopic distortion, and a natural, expansive soundstage – all from a device smaller than your thumb.

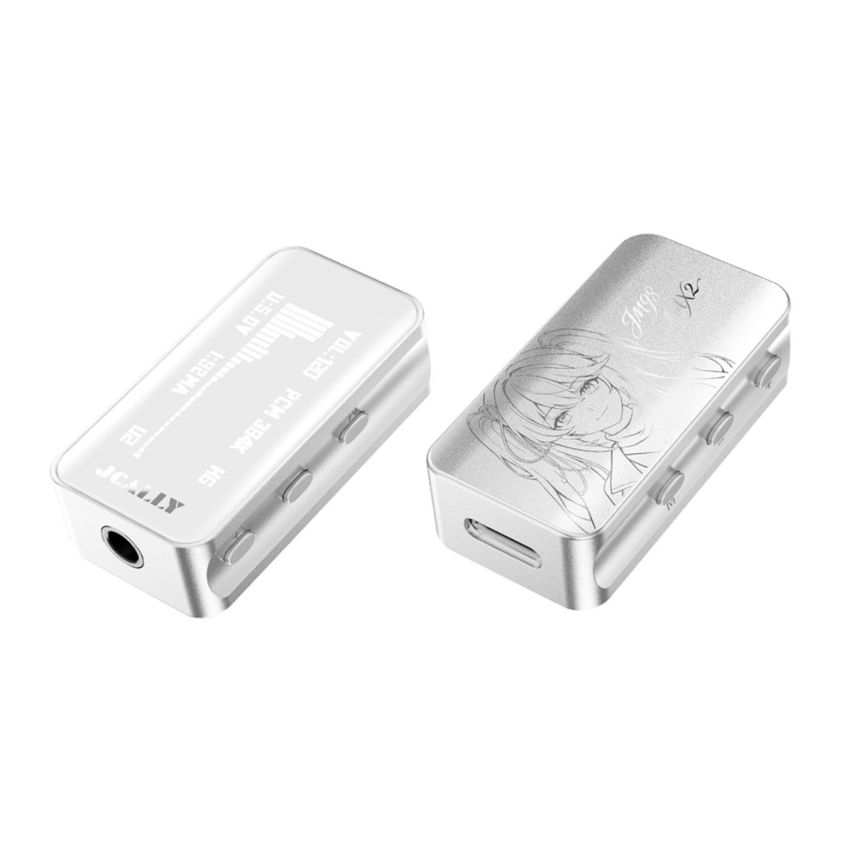

Encased in a precision CNC-machined aluminum shell in Moonlight Silver, the JM98MAX2 looks and feels as premium as it sounds. The integrated LCD color display shows real-time volume and format information, while the detachable USB-C design means you’re never locked into a single cable – seamlessly switch between your phone, tablet, or laptop.
Key Features
Flagship CS43198 DAC Chip – Supports PCM up to 32bit/384kHz and Native DSD256 for lossless, high-resolution audio.
Brute-Clean Power – High-current SGM8262 amplifier delivers ~195mW (32Ω), effortlessly driving sensitive IEMs and full-size headphones.
Class-Leading Measurements – 125dB SNR, ~1.4μV ultra-low noise floor, and 0.00035% THD guarantee a pitch-black background where only the music exists.
Ultra-Low Output Impedance – At just 0.6Ω, the JM98MAX2 provides ideal electrical damping for multi-driver balanced armature IEMs without altering their frequency response.
LCD Color Display – Instantly view sample rate, volume level, and connection status at a glance.
Detachable USB-C Port – True universal compatibility: use USB-C to USB-C cables for Android/iPhone 15, USB-C to Lightning for older iPhones, or USB-A to USB-C for PC/Mac.
CNC-Milled Aluminum Shell – The compact Moonlight Silver body (36.2×18.7×10.7mm) is durable, shielding, and exceptionally pocketable.
Specifications:
- Brand:JCALLY
- Model:JM98 MAX 2
- Product Type:Portable DAC Headphone Amplifier
- DAC Chip:CIRRUS LOGIC CS43198
- Amplifier Chip:SGMICRO SGM8262
- PCM Support:Up to 32bit / 384kHz
- DSD Support:Up to DSD256 Native
- Output Interface:3.5mm Single-ended
- Maximum Output Power:Approx. 195mW @32Ω
- Output Impedance:0.6Ω
- Signal-to-Noise Ratio:125dB
- Dynamic Range:121dB
- THD+N:0.00035%
- Crosstalk:-75dB
- Display:Color LCD Screen
- Material:CNC Precision-machined Metal
- Color:Moonlight Silver
- Dimensions:36.2 × 18.7 × 10.7mm
What's in the box:
- JCALLY JM98 MAX 2 DAC Amplifier ×1
- USB-C Cable×1
- User Manual×1
- USB adapter x1
FAQ:
Q1:Does the JM98MAX2 work with my iPhone?
Yes. For iPhone 15 and newer with USB-C, simply connect with the included USB-C to USB-C cable. For iPhones with a Lightning port (iPhone 14 and earlier), you’ll need a separate USB-C to Lightning OTG cable. The JM98MAX2 is fully MFi-compatible when used with an appropriate cable.
Q2:Can I use it with my PC or Mac?
Absolutely. Connect via the included USB-A to USB-C adapter (or a USB-C cable directly if your computer has USB-C). It’s driverless for Windows 10/11, macOS, and most Linux distributions. For Windows systems requiring ASIO, you can use the standard CS43198 driver.
Q3: What is the JCALLY JM98 MAX 2 used for?
A: The JM98 MAX 2 is a portable USB DAC and headphone amplifier that improves audio quality by bypassing the built-in audio hardware of smartphones and computers, providing cleaner and more powerful sound output.
Q4: Does it support high-resolution music?
A: Yes. It supports up to 32-bit/384kHz PCM and DSD256 Native, making it suitable for high-resolution lossless music playback.
Q5: How much does the shipping cost?
A:The shipping cost is base on the item's weight and destination.
Add to cart > Enter your destination to get a shipping estimate.
Q6. Do I need to pay customs duties or import taxes?
A:This depends on the shipping method and destination country.
We offer Duty Paid (DDP) shipping where import taxes are covered.
For express couriers such as DHL, FedEx, or UPS, import duties will be charged by local customs.
