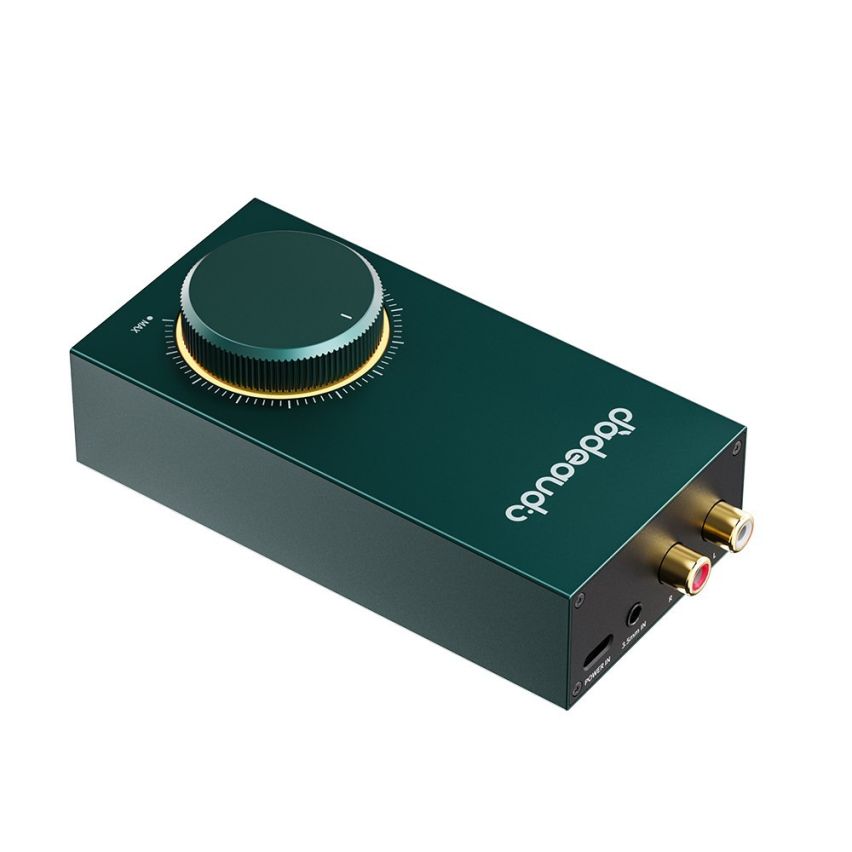

Whether you’re driving demanding planar magnetic headphones or sensitive IEMs, this fully discrete transistor headphone amplifier delivers pristine, high-current amplification. Built around genuine ON Semiconductor MJE243G and MJE253G power transistors (4 per channel), it effortlessly swings massive voltage and current to bring out every detail in your music. With a robust 4.4mm balanced output, a 3.5mm single-ended output with CTIA mic pass-through, and dual-supply flexibility (standard 5V USB or high-voltage PD 12V), it adapts to your source and your headphones—anywhere, anytime.
Design & Build
Available colors: Black / Silver / Green
Compact desktop form factor
Dimensions: approx. 132 × 60 × 40 mm (excluding feet)
Weight: approx. 210g
Solid metal-inspired housing for stability and heat dissipation
Power Input
USB Type-C power input
5V / 2A standard mode
PD 12V / 2A high-power mode
Adaptive power switching for different headphone loads
Input Interfaces
RCA analog input
3.5mm single-ended input
Wide compatibility with DACs, phones, and audio sources
Output Interfaces
4.4mm balanced headphone output
3.5mm single-ended headphone output
3.5mm supports CTIA microphone passthrough
Amplification Hardware
Built with discrete transistor amplification architecture:
ON Semiconductor MJE243G ×4
ON Semiconductor MJE253G ×4
Designed to deliver high current output with stable low-noise performance.
Output Power Performance
5V Power Mode
Balanced Output:
32Ω: ≥ 580mW + 580mW (THD+N <1%, 4.3Vrms)
16Ω: ≥ 790mW + 790mW (THD+N <1%, 3.6Vrms)
Single-ended Output:
32Ω: ≥ 170mW + 170mW (THD+N <1%, 2.3Vrms)
16Ω: ≥ 280mW + 280mW (THD+N <1%, 2.1Vrms)
PD 12V Power Mode (High Gain Output)
Balanced Output:
32Ω: ≥ 4600mW + 4600mW (THD+N <1%, 12.1Vrms)
16Ω: ≥ 3300mW + 3300mW (THD+N <1%, 7.3Vrms)
300Ω: ≥ 740mW + 740mW (THD+N <1%, 14.9Vrms)
Single-ended Output:
32Ω: ≥ 1400mW + 1400mW (THD+N <1%, 6.7Vrms)
16Ω: ≥ 2200mW + 2200mW (THD+N <1%, 5.9Vrms)
300Ω: ≥ 185mW + 185mW (THD+N <1%, 7.5Vrms)
